S Series Technical Brochure DownloadBulkquip delivers mainly in NSW and ACT but, deliveries to other Australian states may be affected by contacting Bulkquip and making special arrangements.
EPS016: S16 Ball Vibrator
$163.00

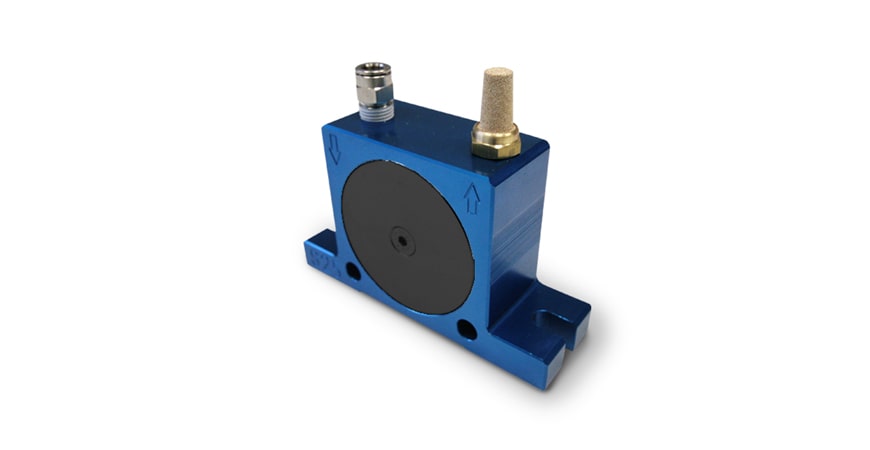

OLI S Type External Pneumatic Ball Vibrators develop frequencies of up to 35,000 rpm and they are used wherever powdery materials have to be moved. S-Type Ball Vibrators are installed on bins to prevent bridging or ratholing, and for the improvement of material flow on chutes, screens and vibrating tables.
Postage & Handling: $12.00
Postage based on regular parcel postage in NSW & ACT only.
For delivery outside these areas please contact Bulkquip for a quote.
Benefits
- Easy to fit
- Low air consumption
- Economical
S-series Ball Vibrators
With S-series Ball Vibrators vibration is generated by the movement of a ball inside an eccentric guide.
S-series vibrators generate low amplitude high frequency vibration.
They are particularly efficient with fine powders granular materials such as sand or seeds.
They are also suitable compacting applications in consolidation.
Manufactured from a blue aluminium body with a galvanized steel cover, the S-series is available in eight different sizes.
Working pressure ranges from 2 to 6 bar (29 ~ 87 PSI) of oiled air.
Compliant with ATEX EX II 2DG cT(x), the S-series is a suitable application in explosive environments.
Operating noise reaches 90 dB(A).
Among pneumatic rotary vibrators, the S-series is the most economical solution.
Sectors
- Building & Construction
- Energies
- Environmental Technology
- Feed & Food
- Heavy Industries
- Plants & Machinery
- Plastics & Chemicals
| Weight | 0.491 kg |
|---|---|
| Dimensions | 13 × 8 × 5 cm |
| Product Type | S Series – Pneumatic Ball Vibrators |
| OLI Part Reference | S16 |
| Manufacturer | OLI |
