EWO – High Frequency Vibrator with Electronic Converter
Share:

EWO65CA: High Frequency Vibrator with Electronic Converter (65mm)

$2,498.65

SKU: EWO65CA
Category:Internal Concrete Vibrators

The EWO65CA is a high frequency vibrator with an electronic converter measuring 65mm. Its compact and robust design, this device provides precise and reliable vibration suitable for various industrial applications. The electronic converter ensures a smooth and efficient operation, enabling the vibrator to generate high-frequency vibrations with accuracy and consistency. The EWO65CA is designed for use in confined spaces, making it an ideal solution for material handling, screening, and other vibration-related processes where space is limited.

An extra 10m working hose is also available. Phone 1300 026 011 for prices.

Model: EWO65C
Head ø (mm): 65
Head Length (mm): 484
Head Weight (kg): 9.4
Total Weight (kg): 22.4
Centrifugal Force (N): 7,330
Rated Current (A): 4.5
Power (kW): 1.4
Vibrator Needle Head Protection Class: IP 68

Postage & Handling: $55.00

Postage based on regular parcel postage in NSW & ACT only.
For delivery outside these areas please contact Bulkquip for a quote.

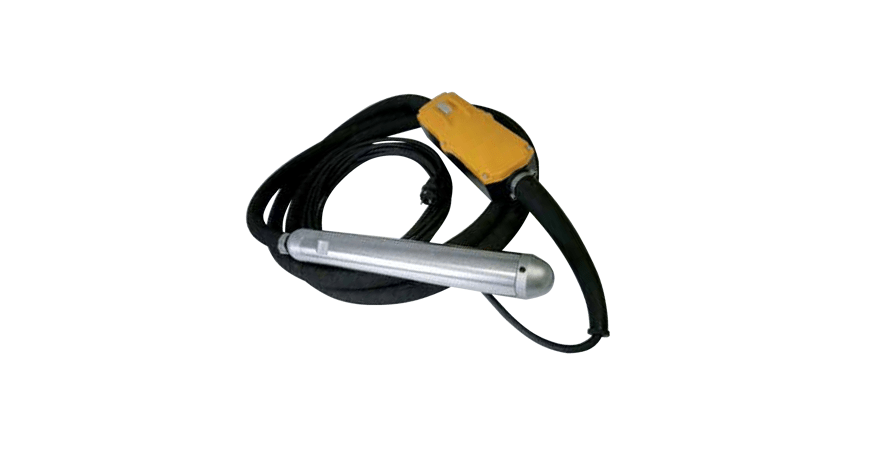

EWO Electric High Frequency Internal Vibrators, which are directly connected with the mains supply at 230 V, 50/60 Hz, consist of a tractor unit called vibrator head, 10 metres of electric cable and of 5 metres internally reinforced operating hose.

The high centrifugal force is generated by a high frequency electric motor integrated in the vibrator head.

Vibrators are equipped with a key pad (IP 66 protection) in polyamide, complete with switch protected by a reinforced gasket resistant to continuous use and wear.

Benefits

  • Reliable
  • Safe
  • Easy to handle
  • No overheating
  • Easy maintenance

Sectors

  • Building & Construction
  Concrete Consolidation Brochure PDF
Weight 22.4 kg
Product Type

EWO – High Frequency Internal Vibrator with built-in converter
Manufacturer

OLI
